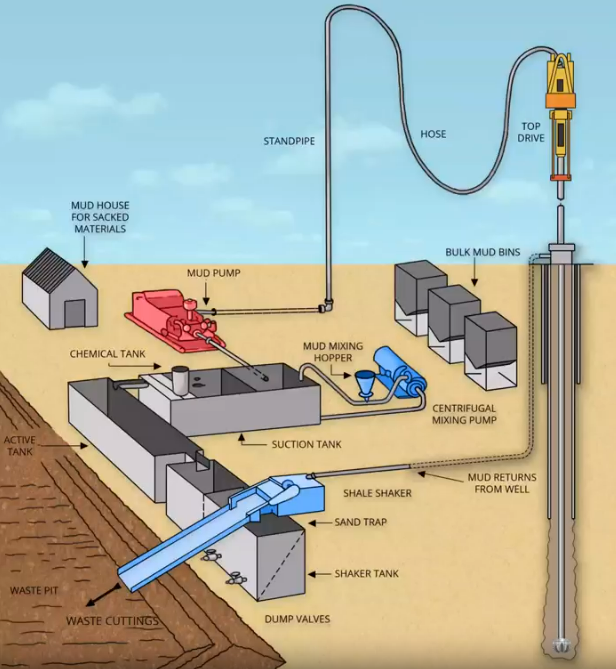

Mud Circulation System

1. Mud Pumps:

• High-pressure pumps that circulate drilling mud through the system.
• Types: Triplex or duplex pumps.

2. Mud Tanks (Pits):

• Stores drilling mud and allows for settling of solids.
• Types: Suction pit, mixing pit, and reserve pit.

3. Mud Mixing Unit:

• Adds chemicals and other additives to the drilling fluid to maintain the desired properties.

4. Shale Shakers:

• Removes larger rock cuttings from the mud returning from the borehole.

5. Desander and Desilter:

• Separates smaller particles that pass through the shale shakers.
• Desander removes particles between 40-100 microns, while desilters handle 15-40 microns.

6. Degasser:

• Removes gas bubbles trapped in the mud, which can affect drilling performance and safety.

7. Mud Cleaner:

• A combination of a desilter and fine screen to further clean the mud.

8. Mud Return Line:

• A pipe that returns the mud with cuttings from the well to the mud tanks.

9. Rotary Hose / Kelly Hose:

• A flexible high-pressure hose connecting the mud pump to the swivel or top drive.

10. Standpipe and Swivel:

• The standpipe is a rigid pipe that channels mud to the rotary hose.
• The swivel or top drive allows rotation of the drill string while maintaining a connection with the mud system.

 Mud Circulation Process

1. Injection: Mud is pumped from the mud tanks through the pumps and into the drill string via the standpipe and rotary hose.

2. Circulation Downhole: Mud flows down the drill pipe and exits through nozzles in the drill bit, carrying cuttings upward.

3. Return Flow: Mud returns to the surface through the annulus (space between the drill string and the borehole wall).

4. Separation and Cleaning: Mud with cuttings passes through shale shakers, desanders, and other equipment to remove solids.

5. Reuse: Cleaned mud is stored in the tanks, where it can be recirculated.

Kuofu Equipment provide : bi-metal and ceramic liner, piston, valve body, valve seat, valve insert, piston rod, extension rod, cylinder head, valve cover, cylinder cover, pulsation dampener, V-belt and so on. We can also provide the complete mud pump and pump package to our clients.
All parts are compatible and interchangeable with domestic and foreign brands including BOMCO, EMSCO, Gardner Denver, National, Oilwell, IDECO, Skytop/Brewster, OPI, Wirth, Wilson, Gaso, etc.

The available pump models are F Series (BOMCO, EMSCO and LSNOW), 3NB/F Feries (HongHua), P Series (National), PZ Series (Gardner-Denver), A Series (Oilwell), T Series (Ideco), TFI-F Series, RG-F Series, RS-F Series, RL-F Series, TSC-F Series, SPM TWS 600S, TWS 1000, TWS 2250, TWS 2500 and etc.
