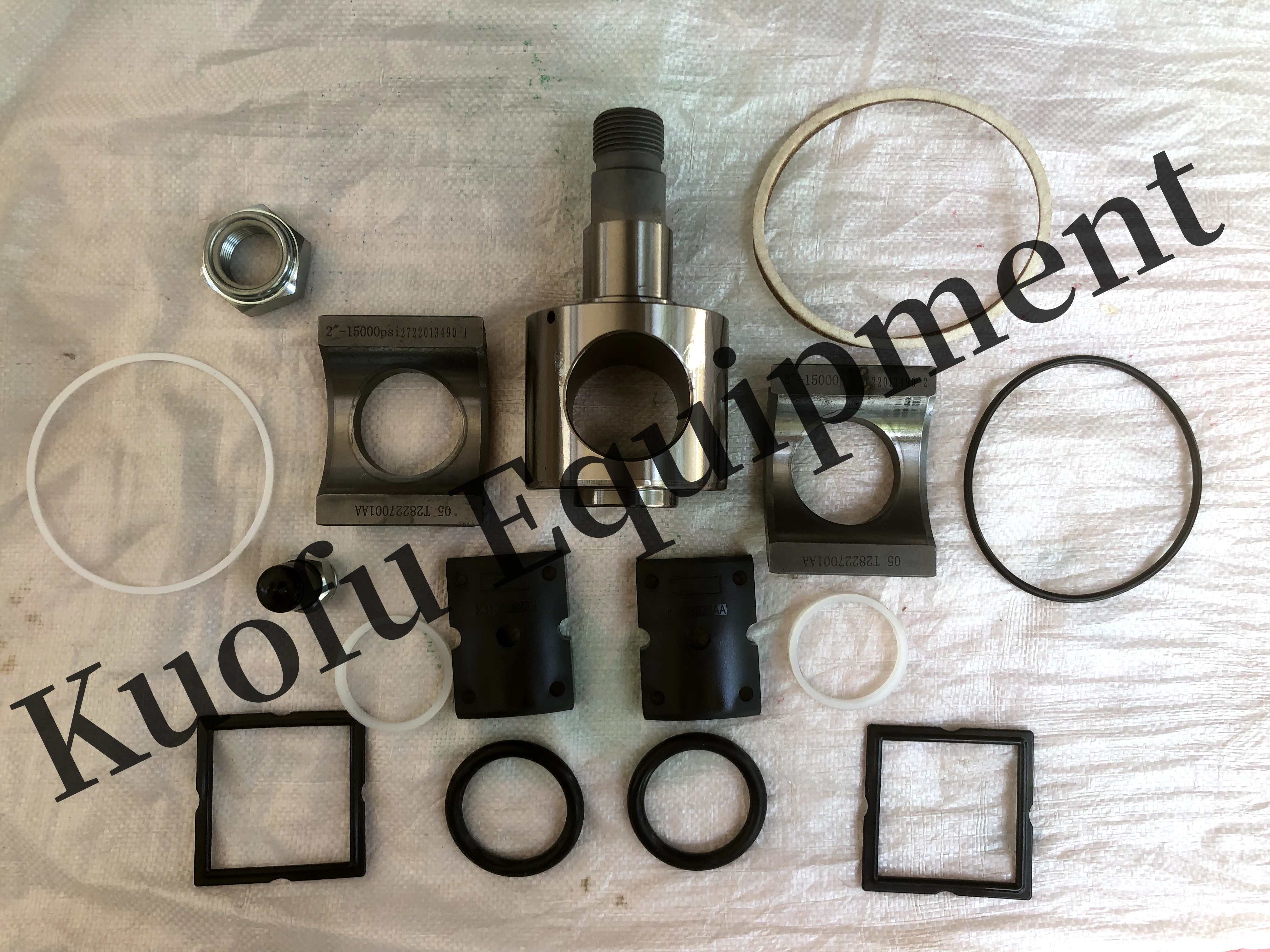

Plug valve repair kits can be provided for standard service, or low temperature and sour gas condition.Our Plug valve repair kits are replaceable and interchangeable for Weir SPM™, SJ Petro Brand which is including plug, seal segment, side segment, elastomer seals, and grease fittings,Etc.
| Name | 1"×2"plug valve | 2"×2"plug valve | 3"×3"plug valve | ||||||
| Qty. | 105Mpa | 70Mpa | 42Mpa | 105Mpa | 70Mpa | 42Mpa | 105Mpa | 70Mpa | 42Mpa |
| 15000psi | 10000psi | 6000psi | 15000psi | 10000psi | 6000psi | 15000psi | 10000psi | 6000psi | |
| Side segment | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Seal segment | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Inner seal and Outer seal |
2 |
2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Lock nut, Hex | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O-ring for body cap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O-ring for plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Nylon backup ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Grease Retainer Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Grease fitting | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
