Spm pump spare parts No.


We Provide SPM Fracturing Pump Spare Parts

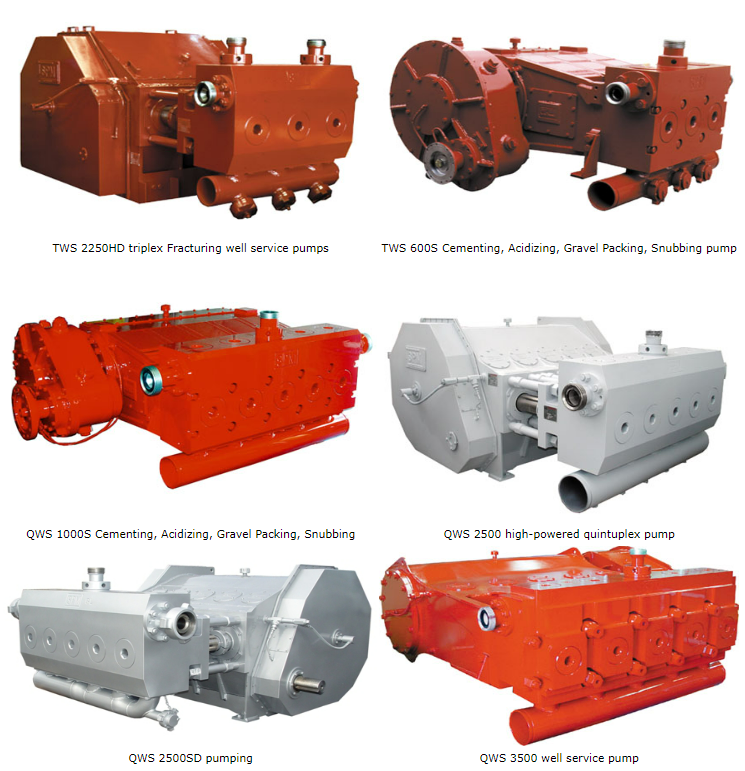

SPM Triplex and Quintuplex Pumps:
• TWS 600• TWS 2000• TWS 2250 • QWS1000 • QWS 2500• QWS 2800

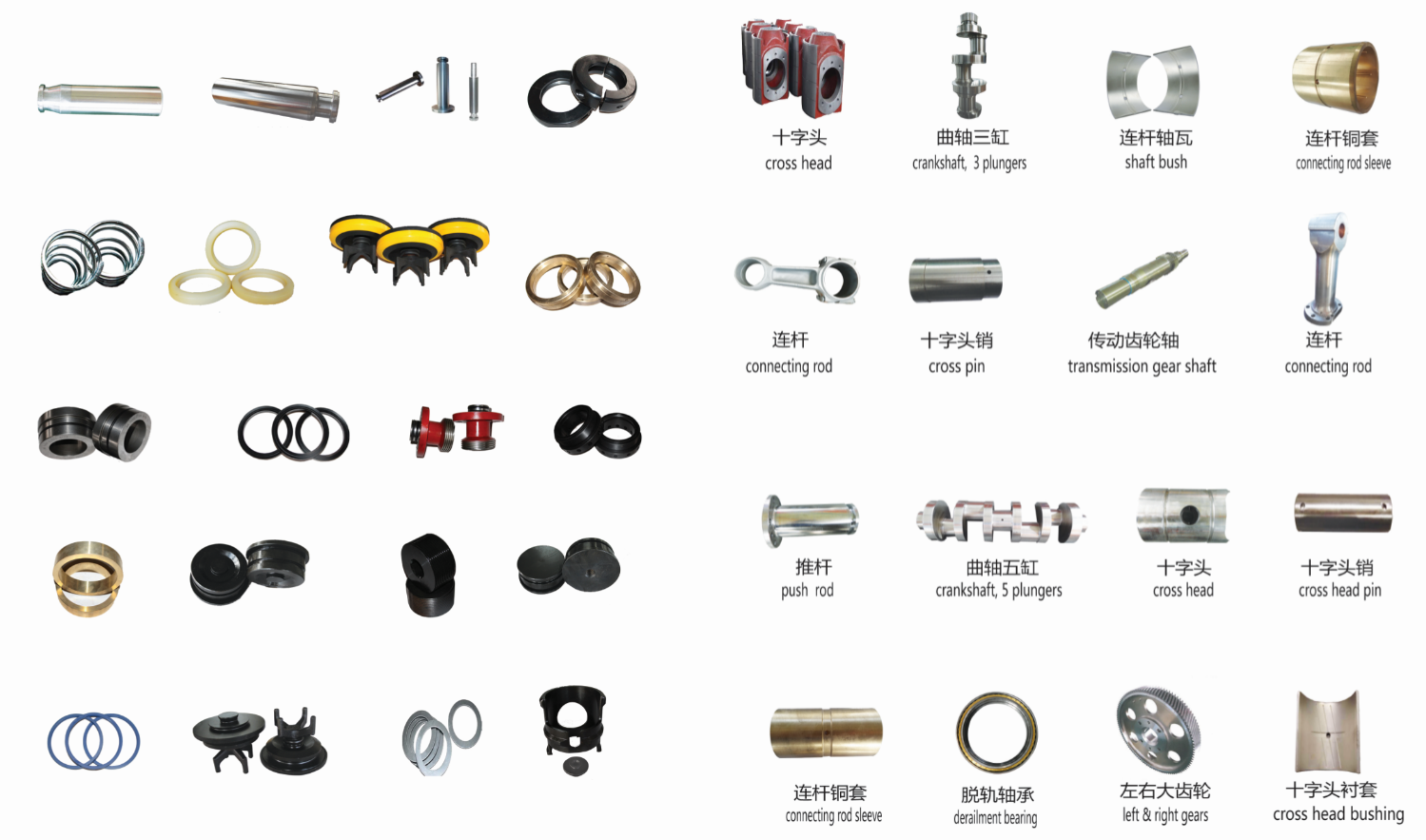

Power ends:Cross head, connecting rod, bearings, bull gears and shaft, crankshaft.
Fluid ends:Plungers, Valves&seats, packing, retainers, flange, etc


Spare parts for SPM TWS-600s pumps with plunger diameter of 3"

Item No. Name Code Part Number SPM
1 Fluid end IMZ-07.600.00 1P104705
2 3″ plunger IMZ-07.600.01 2P103345
3 Lantern ring IMZ-07.600.02 3P107527
4 Header ring IMZ-07.600.03 P100332HP
5 Pressure ring IMZ-07.600.04 P100331HP
6 Seal case IMZ-07.600.05 3P103524
7 Packing nut IMZ-07.600.06 3P104709
8 Wiper ring IMZ-07.600.07 P102093HP
9 Lower suction cover IMZ-07.600.10 3P104710
10 Upper suction cover IMZ-07.600.37 2P104711
11 Upper,Lower suction cover polyurethane seal IMZ-07.600.11 P105095
12 Upper,Lower suction cover D-shape seal IMZ-07.600.24 P109313
13 Suction valve stop IMZ-07.600.12 3P101634
14 Valve spring IMZ-07.600.13 4P104721
15 Retainer nut IMZ-07.600.14 3P104723
16 Valve IMZ-07.600.16 2A109608PP
17 Seat IMZ-07.600.17 2A109605PP
18 Seat seal IMZ-07.600.17-01 P104289
19 Adapter IMZ-07.600.18 P107614
20 Valve insert IMZ-07.600.19 2P110355
21 Small fluoroplastic sealing ring IMZ-07.600.20 P103576
22 Large fluoroplastic sealing ring IMZ-07.600.21 P103370
23 Large sealing ring IMZ-07.600.22 P103368
24 Small sealing ring IMZ-07.600.23 P18481
25 Discharge flange IMZ-07.605.30 3P100182
26 Plunger packing seal IMZ-07.600.33 3A104769HP
27 Plunger small packing seal IMZ-07.600.32 3A107009HP
28 Plunger pin IMZ-07.605.36 4P101714
29 Retainer nut for pressure gage IMZ-07.600.36 2P104719
30 2″End seal for HP mains IMZ-08.330.10-02 4P10229
31 Discharge flange stud 1-8 UNCх31/2 IMZ-07.330.39 P14896
32 Nut 1-8 UNC IMZ-07.330.39-01 P14897
33 End sealing ring discharge flange IMZ-07.605.38 P109509
34 D-shape sealing ring discharge flange IMZ-07.605.39 P109509



Spare parts for SPM TWS-600s pumps with plunger diameter of 3,5"



Item No. Name Code Part Number SPM
1 Fluid end IMZ-07.605.00 1P102978
2 3.5″ plunger IMZ-07.601.01 2P103344
3 Lantern ring IMZ-07.601.02 3P103050
4 Header ring IMZ-07.601.08 P100298HP
5 Pressure ring IMZ-07.601.07 P100297
6 Seal case IMZ-07.601.05 3P103034
7 Packing nut IMZ-07.601.06 3P103038G
8 Wiper ring IMZ-07.601.09 P102208
9 Lower suction cover IMZ-07.605.22 3P104373
10 Upper suction cover IMZ-07.605.26 3P105149
11 Upper suction cover polyurethane seal IMZ-07.605.11 P103068
12 Upper suction cover D-shape seal IMZ-07.605.34 P109379
13 Suction valve stop IMZ-07.605.12 3P100176
14 Valve spring IMZ-07.605.13 4P100198
15 Retainer nut IMZ-07.605.14 3P104372
16 Valve with insert IMZ-07.605.16 2A109537PP
17 Seat IMZ-07.605.17 2A109541
18 Seat seal IMZ-07.605.17-01 P103293
19 Adapter IMZ-07.601.18
20 Valve insert IMZ-07.605.18 2P110356
21 Small fluoroplastic sealing ring IMZ-07.605.20 P103064
22 Large fluoroplastic sealing ring IMZ-07.601.21 P103349
23 Large sealing ring IMZ-07.601.22 P101519
24 Small sealing ring IMZ-07.605.23 P103063
25 Lower suction cover seal IMZ-07.605.24 P108291
26 Plunger packing seal IMZ-07.601.33 3A105368
27 Plunger small packing seal IMZ-07.601.32 3A109554
28 Plunger pin IMZ-07.605.36 4P101714
29 Retainer nut for pressure gage IMZ-07.605.35 2P103069
30 2″ end seal for HP mains IMZ-08.330.10-02 4P10229
31 Lower suction cover polyurethane seal IMZ-07.605.11-01 P100197
32 Discharge flange IMZ-07.605.30 3P100182
33 Discharge flange stud 1-8 UNCх3 1/2 IMZ-07.330.39 P14896
34 Nut 1-8 UNC IMZ-07.330.39-01 P14897
35 End sealing ring discharge flange IMZ-07.605.38 P109509
36 D-shape sealing ring discharge flange IMZ-07.605.39 P109509





Spare parts for SPM TWS-2250 pumps with plunger 5"




Item No. Name Code Part Number SPM
1 Fluid end IMZ-07.330.00 1P100335
2 Spacer IMZ-07.330.27 4P100237
3 Header ring IMZ-07.330.02 P100246HP
4 Pressure ring IMZ-07.330.03 P100245HP
5 Female adapter IMZ-07.330.12 4P100239
6 Lantern ring IMZ-07.330.11 4P100238
7 Wiper ring IMZ-07.330.04 P101382HP
8 Packing nut IMZ-07.330.13 3P100236G
9 5″ plunger IMZ-07.331.01 3P100233
10 Retainer nut IMZ-07.330.19 4P100130
11 Upper suction cover IMZ-07.330.25 3P100231
12 Upper suction cover D-shape seal IMZ-07.331.08-01 P108232
13 Valve spring IMZ-07.330.18 4P100235
14 Valve IMZ-07.414.25 P105743
15 Valve insert IMZ-07.256.17 P105363
16 Seat IMZ-07.415.25 P105753
17 Suction valve stop IMZ-07.330.17 3P100232
18 Lower suction cover IMZ-07.330.15 3P106935
19 Lower suction cover seal back-up IMZ-07.330.24 P100230
20 Pony rod IMZ-07.331.05 3P100025
21 5″ plunger clamp IMZ-07.330.23 3P100148
22 Plunger packing IMZ-07.330.10 3A105224 3A105224GD*
23 Valve seat seal IMZ-07.415.25-2 P102173
24 Check valve for plungers lubricating system IMZ-07.330.28
25 Packing nut pin IMZ-07.330.29
26 Discharge flange IMZ-07.330.30 3P100132
27 D-shape sealing ring of lower suction cover IMZ-07.331.11-01
28 5″ pony rod seal IMZ-07.331.06 P100059
29 Rubber sealing ring of lower suction cover IMZ-07.330.16 3P106933
30 Suction cover for pressure gage IMZ-07.330.32 2P100586
31 Retainer nut for pressure gage IMZ-07.330.33 4P101259
32 Discharge flange stud 1-8 UNCх3 1/2 IMZ-07.330.39 P14896
33 Nut 1-8 UNC IMZ-07.330.39-01 P14897
34 End seal with brass IMZ-07.330.40 4P10258
35 Pump fluid end pin IMZ-07.330.41 3P103852
36 2″ end seal for HP mains IMZ-08.330.10-02 4P10229
37 Plunger seal adapter IMZ-07.330.09





Spare parts for SPM TWS-2250 pumps with plunger 4.5"

Item No. Name Code Part Number SPM
1 Fluid end IMZ-07.331.00 1P100646
2 Spacer IMZ-07.331.21 4P100649
3 Header ring IMZ-07.330.07 P100195HP
4 Pressure ring IMZ-07.330.06 P100652HP
5 Female adapter IMZ-07.331.03 4P100650
6 Lantern ring IMZ-07.331.02 4P100651
7 Wiper ring IMZ-07.330.08 P101252HP
8 4.5″ packing nut IMZ-07.331.04 3P100647G
9 4.5″ plunger IMZ-07.330.20 3P100654
10 Retainer nut IMZ-07.330.19 4P100130
11 Upper suction cover IMZ-07.330.25 3P100231
12 Upper suction cover D-shape seal IMZ-07.331.08-01 P108232
13 Valve spring IMZ-07.330.18 4P100235
14 Valve IMZ-07.414.25 P105743
15 Valve insert IMZ-07.256.17 P105363
16 Seat IMZ-07.415.25 P105753
17 Suction valve stop IMZ-07.330.17 3P100232
18 Lower suction cover IMZ-07.330.15 3P106935
19 Lower suction cover seal back-up IMZ-07.330.24 P100230
20 Pony rod IMZ-07.331.05 3P100025
21 4,5″-5″ plunger clamp IMZ-07.331.17 3P100340
22 Plunger packing IMZ-07.331.20 3A104367HP 3A104367GD*
23 Valve seat seal IMZ-07.415.25-2 P102173
24 Check valve for plungers lubricating system IMZ-07.330.28
25 Packing nut pin IMZ-07.330.29
26 Discharge flange IMZ-07.330.30 3P100132
27 D-shape sealing ring of lower suction cover IMZ-07.331.11-01
28 5″ pony rod seal IMZ-07.331.06 P100059
29 Rubber sealing ring of lower suction cover IMZ-07.330.16 3P106933
30 Suction cover for pressure gage IMZ-07.330.32 2P100586
31 Retainer nut for pressure gage IMZ-07.330.33 4P101259
32 Discharge flange stud 1-8 UNCх3 1/2 IMZ-07.330.39 P14896
33 Nut 1-8 UNC IMZ-07.330.39-01 P14897
34 End seal with brass IMZ-07.330.40 4P10258
35 Pump fluid end pin IMZ-07.330.41 3P103852
36 2″ end seal for HP mains IMZ-08.330.10-02 4P10229
37 Plunger seal adapter IMZ-07.330.09








Item No. Name Code Part Number SPM
1 Fluid end IMZ-07.229.00 1P100335
2 Spacer IMZ-07.229.25 4P100344
3 Header ring IMZ-07.229.05 P100342HP
4 Pressure ring IMZ-07.229.04 P100343HP
5 Female adapter IMZ-07.229.09 4P100345
6 Lantern ring IMZ-07.229.08 4P100346
7 Wiper ring IMZ-07.229.06 P101833HP
8 4″ packing nut IMZ-07.229.10 IMZ-07.229.10 3P100341G
9 4″ plunger IMZ-07.229.01 3P100339
10 Retainer nut IMZ-07.330.19 4P100130
11 Upper suction cover IMZ-07.229.11 3P100337
12 D-shape sealing ring of lower suction cover IMZ-07.229.12 P108143
13 Valve spring IMZ-07.229.18 4P100348
14 Valve IMZ-07.229.22-01 P105741
15 Valve insert IMZ-07.229.24 P105763
16 Seat IMZ-07.229.23 P105751
17 Suction valve stop IMZ-07.229.26 3P100338
18 Lower suction cover IMZ-07.229.14 3P100336
19 Lower suction cover seal back-up IMZ-07.229.16 P107153
20 Pony rod IMZ-07.331.05 3P100025
21 4,5″-5″ plunger clamp IMZ-07.331.17 3P100340
22 Plunger packing IMZ-07.229.27 3A105348HP 3A105348GD*
23 Valve seat seal IMZ-07.229.23-01
24 Check valve for plungers lubricating system IMZ-07.330.28
25 Packing nut pin IMZ-07.330.29
26 Discharge flange IMZ-07.330.30 3P100132
27 5″ pony rod seal IMZ-07.331.06 P100059
28 Rubber sealing ring of lower suction cover IMZ-07.330.16 3P106933
29 Suction cover for pressure gage IMZ-07.229.32 2P100354
30 Retainer nut for pressure gage IMZ-07.330.33 4P101259
31 Discharge flange stud 1-8 UNCх3 1/2 IMZ-07.330.39 P14896
32 Nut 1-8 UNC IMZ-07.330.39-01 P14897
33 End seal with brass IMZ-07.330.40 4P10258
34 Pump fluid end pin IMZ-07.330.41 3P103852
35 2” end seal for HP mains IMZ-08.330.10-02 4P10229
36 Plunger seal adapter IMZ-07.330.09
