Submersible Dredging Sand Pump

Discharge Cabliber: 50-400 mm

Flow: 10-5000 m3/h

Head: 5-60 m

Power: 0.75-255 kw

Speed: 960 r/min

Impeller Number : 2

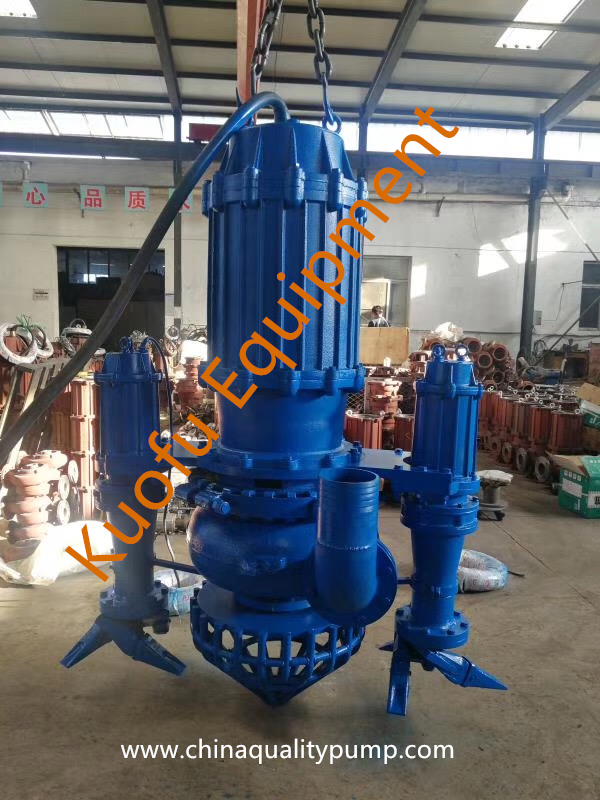

Submersible sand pump overview:

NSQ submersible slurry pump is hydraulic machinery, the motor and the pump of which are coaxially working submerged in medium . The wetted parts of the pump are made of high chromium wearable alloy , so the pump has good wear resistance and large flowing passage. It is applicable for conveying medium such as sludge, ore slurry, coal slurry, sandstones containing big solid particles.

The product is designed and manufactured by domestic and oversea advanced technologies. Besides the main impeller, the bottom of the pump is additionally provided with a set of agitation impeller which can spray the deposited sludge into turbulent flow,. The unique mechnical seal device can effectively balance the pressure inside and outside the oil chamber, so as to protect the reliability of the mechanical seal to the maximum extent. The motor adopts various protective measures such as overheat protection, water inlet detecting protection, and can operate safely for a long term in harsh working condition.

Submersible sand pump application

   1. Pumping tailing slurry for industrial and mining organizations

   2. learing silt in sedimentation basin

   3. pumping silty sand or fine sand for seashore or port

   4. pumping powdery iron ore for foreign countries, etc

   5. Deliver a solid particles of mud, larger pulp, coal slurry, sandstone, and other media

   6. Learn from all kinds of fly ash power plant, coal slime .
