SPM/FMC Type Integral Fitting

Details

Kuofu Provide API 6A Integral Fittings

Size: 2", 3" 4"

Working Pressure: 6,000Psi - 20,000 Psi (42MPa-140MPa)

Ends: thread connection or hammer union

Integral fittings are cementing and fracturing equipment High Pressure Fluid Control Products. Widely used in the acidic operating environment (excluding containing CO2, H2S sour gas operating environment) in the high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines.
Integral fittings technical parameters and performance specifications are in line with API 6A. Its product specification level PLS3, performance levels for the PR2, it can work with SPM's similar products interchangeable.

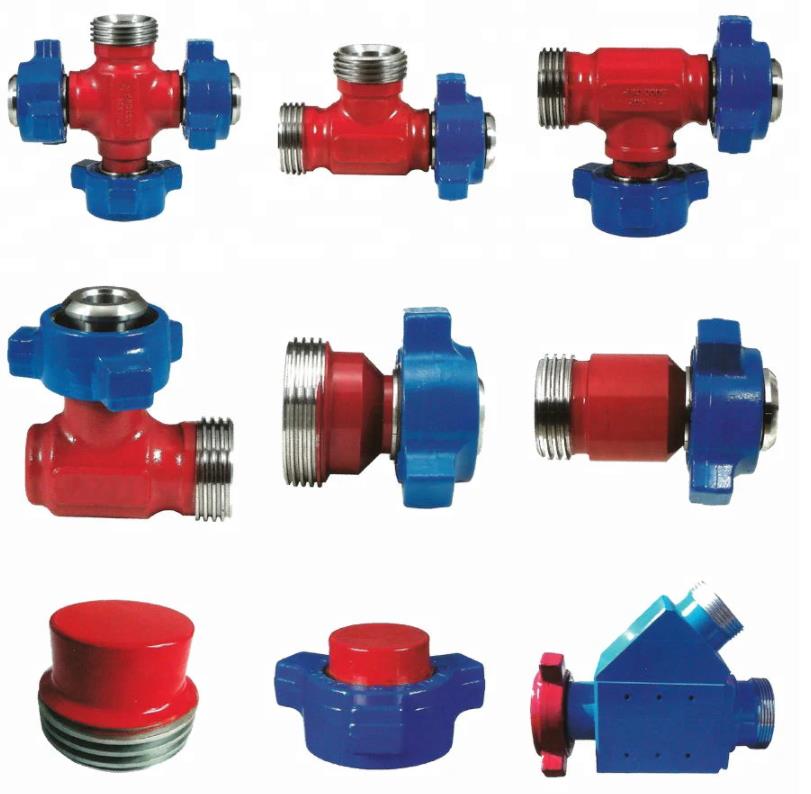

Common Models for Integral Fittings

Production name	size	working environment	model
long sweep elbow	2" 3"	42Mpa(6000psi) 70Mpa(10000psi) 105Mpa(15000psi)	F×M,M×M,F×F,Welding type
right angle elbow			F×M,M×M,F×F,Welding type
Tee			FMF,FMM,FFM,FMF,MMM,FFF,Welded fitting
Y-tee			MFF,Welded fitting
manifold tee			MFF,FFF,Welded fitting
cross tee			FFFF,FFMF,FFMM,FMMM,FMMF,MMMM,Welded fitting
manifold cross			MFFF
integral fitting	2" ×3" 2" ×4" 3" ×4"	Terminal connection type: fig602-fig1002 fig602-fig1502 fig1002-fig1502	Adapter:F×M,F×F,M×F,B×F, M×P,flange fitting×union,Welded fitting
Remark:.Each terminal end of Integral fittings can be customized in size (reducing nipple) ."F"-threaded joint,"M"-sphere joint,"B"-Internal thread,"P"-male thread
