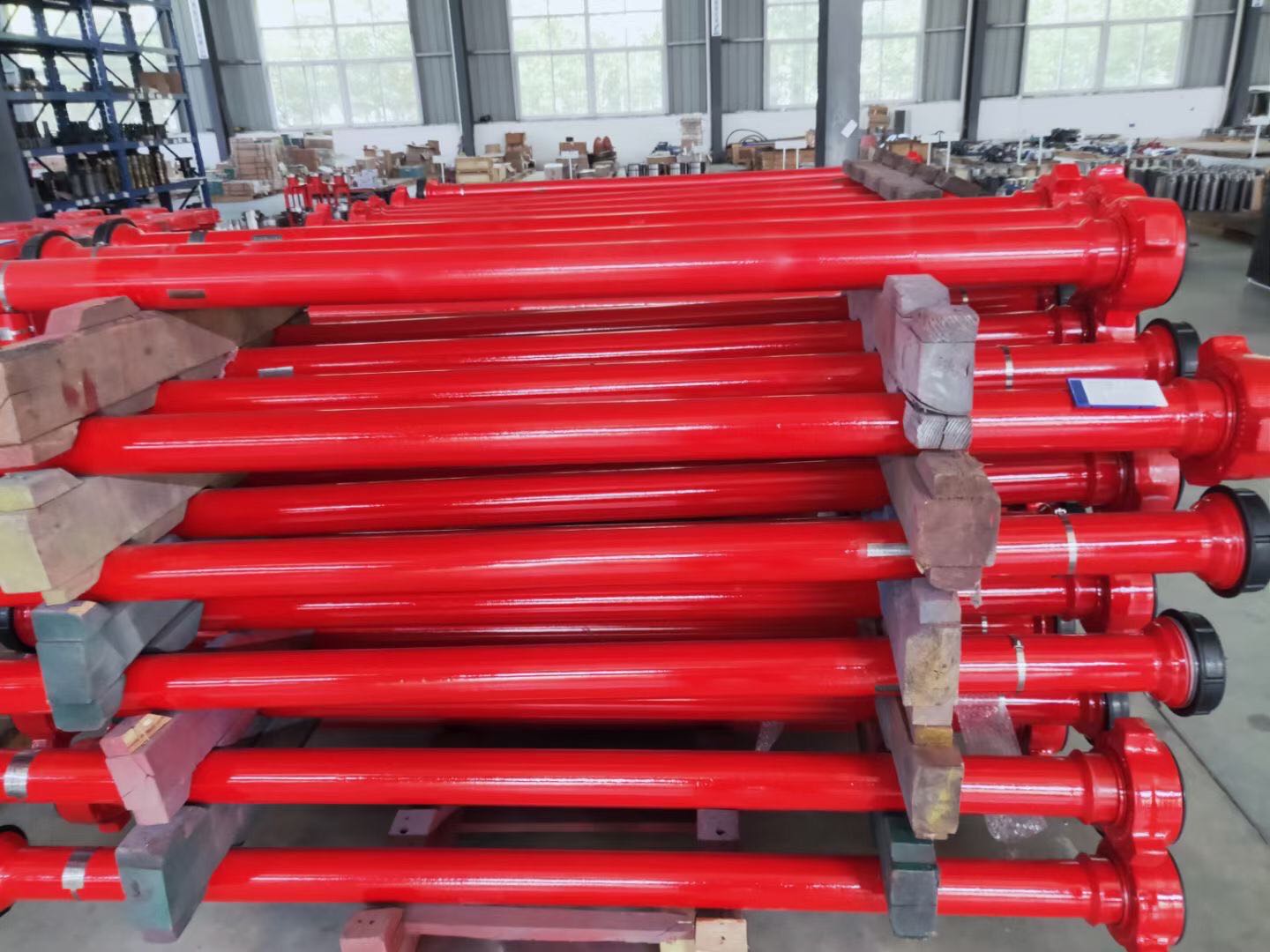

High Pressure Straight Pipe/Pup Joints
API High Pressure Straight Pipes
Kuofu equipment Pup Joints are compatible with FMC Chiksan Pup Joints and SPM Pup Joints and other major brands.
API high pressure straight pipes with a thread, flange or union connectors on both ends, and widely used for petroleum drilling &production, cementing & fracturing and testing operation. With straight tubes with union connections on both ends, Kuofu equipment provide high pressure straight pipes are widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance manifold and test manifold.
Specification:
| Product Name | pup joints |
| Material | carbon steel,stainless steel |
| Color | customer's requirement |
| Standard | API 16C & NACE MR 0175 |
| Working Pressure | 2000PSI~20000PSI |
| Size | 1"~6" |
| Connection | Flange,Welding,Union |
| Working Medium | oil,natural gas and gas containing H2S,CO |
| Description | End Connection | Cold WP | Diameter (inch) | |||
| 1-1/2″ | 2″ | 3″ | 4″ | |||
| Integral Pup Joints | FIG 602 | (6,000psi 42Mpa) | y | y | y | |
| FIG 1002 | 10,000psi (70Mpa) | y | y | y | ||
| FIG 1502 | 15,000psi (105Mpa) | y | y | y | ||
| Integral Pup Joints for sour gas service | FIG 602 | 5,000psi (35Mpa) | y | y | y | |
| FIG 1002 | 7,500psi (53Mpa) | y | y | y | ||
| FIG 1502 | 10,000psi (70Mpa) | y | y | y | ||
| Welded Pup Joints | FIG 602 | 6000psi (42Mpa) | y | y | y | |
| FIG 1002 | 10,000psi (70Mpa) | y | y | y | y | |
| FIG 1502 | 15,000psi (105Mpa) | y | y | y | y | |
