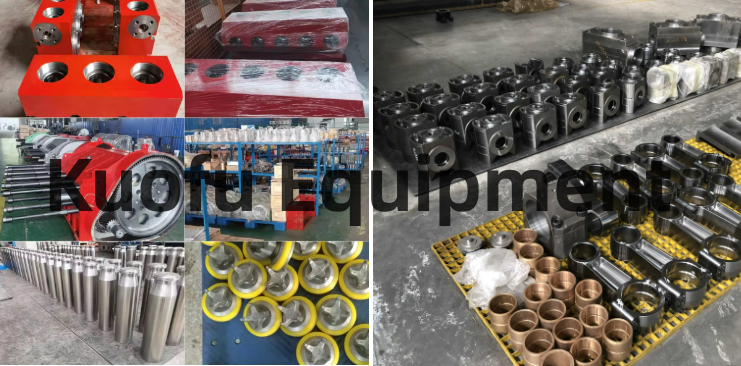

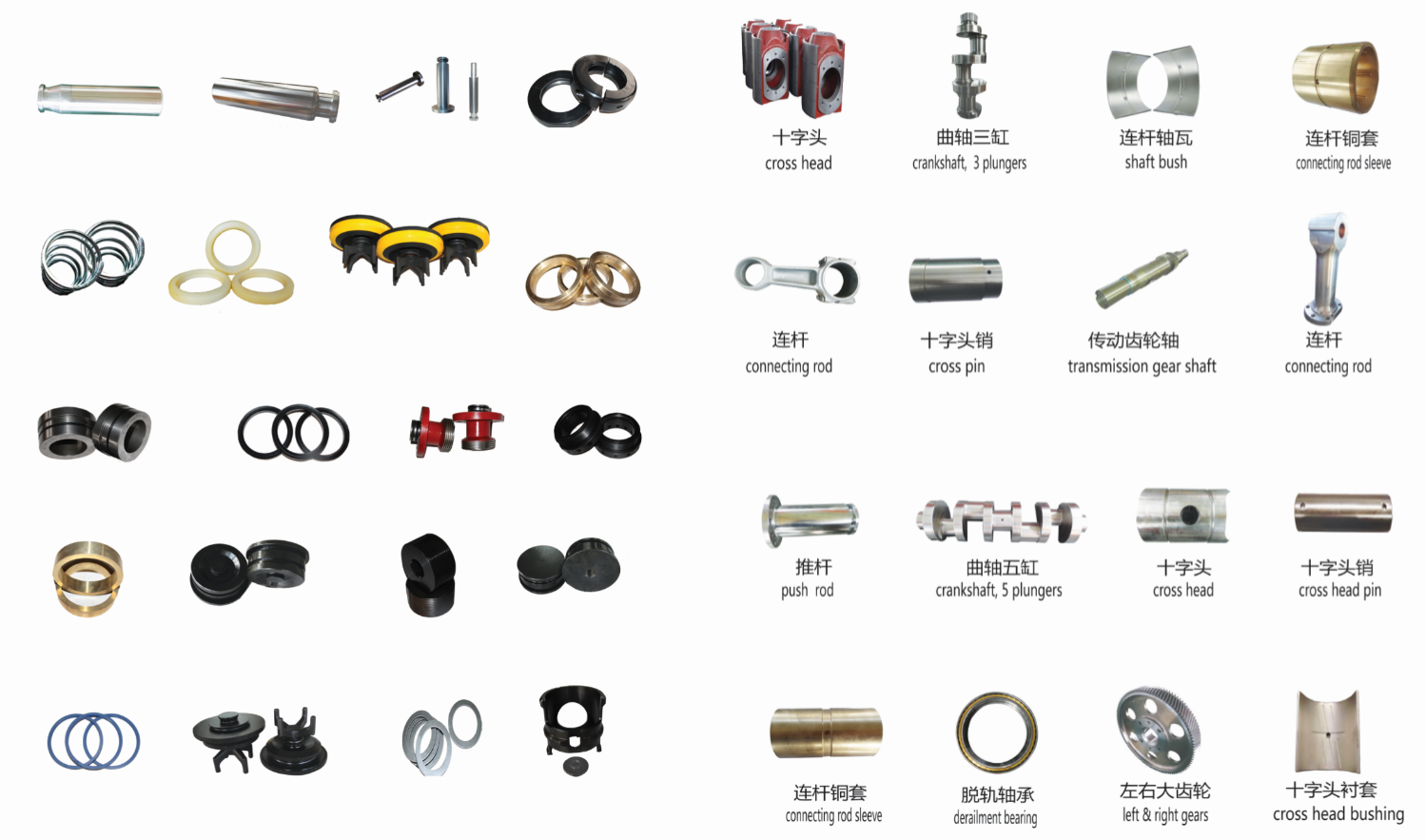

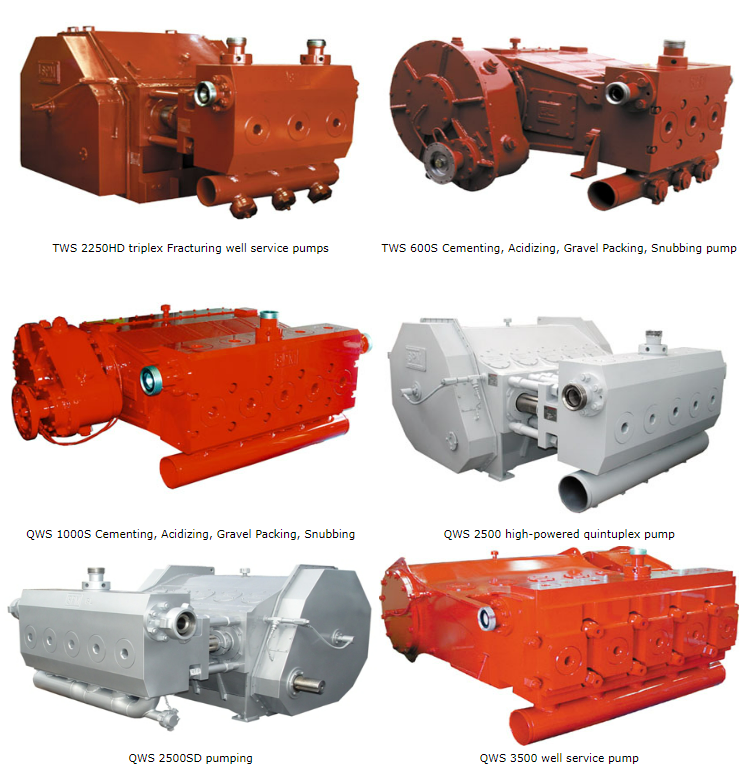

SPM Fracturing Pump and Parts
Kuofu Equipment offers SPM Fracturing Pump Fluid end and Parts replacement serivces
| Item No. | Name | Code | Part Number SPM |
| 1 | Fluid end | IMZ-07.600.00 | 1P104705 |
| 2 | 3″ plunger | IMZ-07.600.01 | 2P103345 |
| 3 | Lantern ring | IMZ-07.600.02 | 3P107527 |
| 4 | Header ring | IMZ-07.600.03 | P100332HP |
| 5 | Pressure ring | IMZ-07.600.04 | P100331HP |
| 6 | Seal case | IMZ-07.600.05 | 3P103524 |
| 7 | Packing nut | IMZ-07.600.06 | 3P104709 |
| 8 | Wiper ring | IMZ-07.600.07 | P102093HP |
| 9 | Lower suction cover | IMZ-07.600.10 | 3P104710 |
| 10 | Upper suction cover | IMZ-07.600.37 | 2P104711 |
| 11 | Upper,Lower suction cover polyurethane seal | IMZ-07.600.11 | P105095 |
| 12 | Upper,Lower suction cover D-shape seal | IMZ-07.600.24 | P109313 |
| 13 | Suction valve stop | IMZ-07.600.12 | 3P101634 |
| 14 | Valve spring | IMZ-07.600.13 | 4P104721 |
| 15 | Retainer nut | IMZ-07.600.14 | 3P104723 |
| 16 | Valve | IMZ-07.600.16 | 2A109608PP |
| 17 | Seat | IMZ-07.600.17 | 2A109605PP |
| 18 | Seat seal | IMZ-07.600.17-01 | P104289 |
| 19 | Adapter | IMZ-07.600.18 | P107614 |
| 20 | Valve insert | IMZ-07.600.19 | 2P110355 |
| 21 | Small fluoroplastic sealing ring | IMZ-07.600.20 | P103576 |
| 22 | Large fluoroplastic sealing ring | IMZ-07.600.21 | P103370 |
| 23 | Large sealing ring | IMZ-07.600.22 | P103368 |
| 24 | Small sealing ring | IMZ-07.600.23 | P18481 |
| 25 | Discharge flange | IMZ-07.605.30 | 3P100182 |
| 26 | Plunger packing seal | IMZ-07.600.33 | 3A104769HP |
| 27 | Plunger small packing seal | IMZ-07.600.32 | 3A107009HP |
| 28 | Plunger pin | IMZ-07.605.36 | 4P101714 |
| 29 | Retainer nut for pressure gage | IMZ-07.600.36 | 2P104719 |
| 30 | 2″End seal for HP mains | IMZ-08.330.10-02 | 4P10229 |
| 31 | Discharge flange stud 1-8 UNCх31/2 | IMZ-07.330.39 | P14896 |
| 32 | Nut 1-8 UNC | IMZ-07.330.39-01 | P14897 |
| 33 | End sealing ring discharge flange | IMZ-07.605.38 | P109509 |
| 34 | D-shape sealing ring discharge flange | IMZ-07.605.39 | P109509 |
| Item No. | Name | Code | Part Number SPM |
| 1 | Fluid end | IMZ-07.605.00 | 1P102978 |
| 2 | 3.5″ plunger | IMZ-07.601.01 | 2P103344 |
| 3 | Lantern ring | IMZ-07.601.02 | 3P103050 |
| 4 | Header ring | IMZ-07.601.08 | P100298HP |
| 5 | Pressure ring | IMZ-07.601.07 | P100297 |
| 6 | Seal case | IMZ-07.601.05 | 3P103034 |
| 7 | Packing nut | IMZ-07.601.06 | 3P103038G |
| 8 | Wiper ring | IMZ-07.601.09 | P102208 |
| 9 | Lower suction cover | IMZ-07.605.22 | 3P104373 |
| 10 | Upper suction cover | IMZ-07.605.26 | 3P105149 |
| 11 | Upper suction cover polyurethane seal | IMZ-07.605.11 | P103068 |
| 12 | Upper suction cover D-shape seal | IMZ-07.605.34 | P109379 |
| 13 | Suction valve stop | IMZ-07.605.12 | 3P100176 |
| 14 | Valve spring | IMZ-07.605.13 | 4P100198 |
| 15 | Retainer nut | IMZ-07.605.14 | 3P104372 |
| 16 | Valve with insert | IMZ-07.605.16 | 2A109537PP |
| 17 | Seat | IMZ-07.605.17 | 2A109541 |
| 18 | Seat seal | IMZ-07.605.17-01 | P103293 |
| 19 | Adapter | IMZ-07.601.18 | |
| 20 | Valve insert | IMZ-07.605.18 | 2P110356 |
| 21 | Small fluoroplastic sealing ring | IMZ-07.605.20 | P103064 |
| 22 | Large fluoroplastic sealing ring | IMZ-07.601.21 | P103349 |
| 23 | Large sealing ring | IMZ-07.601.22 | P101519 |
| 24 | Small sealing ring | IMZ-07.605.23 | P103063 |
| 25 | Lower suction cover seal | IMZ-07.605.24 | P108291 |
| 26 | Plunger packing seal | IMZ-07.601.33 | 3A105368 |
| 27 | Plunger small packing seal | IMZ-07.601.32 | 3A109554 |
| 28 | Plunger pin | IMZ-07.605.36 | 4P101714 |
| 29 | Retainer nut for pressure gage | IMZ-07.605.35 | 2P103069 |
| 30 | 2″ end seal for HP mains | IMZ-08.330.10-02 | 4P10229 |
| 31 | Lower suction cover polyurethane seal | IMZ-07.605.11-01 | P100197 |
| 32 | Discharge flange | IMZ-07.605.30 | 3P100182 |
| 33 | Discharge flange stud 1-8 UNCх3 1/2 | IMZ-07.330.39 | P14896 |
| 34 | Nut 1-8 UNC | IMZ-07.330.39-01 | P14897 |
| 35 | End sealing ring discharge flange | IMZ-07.605.38 | P109509 |
| 36 | D-shape sealing ring discharge flange | IMZ-07.605.39 | P109509 |
| Item No. | Name | Code | Part Number SPM | |
| 1 | Fluid end | IMZ-07.330.00 | 1P100335 | |
| 2 | Spacer | IMZ-07.330.27 | 4P100237 | |
| 3 | Header ring | IMZ-07.330.02 | P100246HP | |
| 4 | Pressure ring | IMZ-07.330.03 | P100245HP | |
| 5 | Female adapter | IMZ-07.330.12 | 4P100239 | |
| 6 | Lantern ring | IMZ-07.330.11 | 4P100238 | |
| 7 | Wiper ring | IMZ-07.330.04 | P101382HP | |
| 8 | Packing nut | IMZ-07.330.13 | 3P100236G | |
| 9 | 5″ plunger | IMZ-07.331.01 | 3P100233 | |
| 10 | Retainer nut | IMZ-07.330.19 | 4P100130 | |
| 11 | Upper suction cover | IMZ-07.330.25 | 3P100231 | |
| 12 | Upper suction cover D-shape seal | IMZ-07.331.08-01 | P108232 | |
| 13 | Valve spring | IMZ-07.330.18 | 4P100235 | |
| 14 | Valve | IMZ-07.414.25 | P105743 | |
| 15 | Valve insert | IMZ-07.256.17 | P105363 | |
| 16 | Seat | IMZ-07.415.25 | P105753 | |
| 17 | Suction valve stop | IMZ-07.330.17 | 3P100232 | |
| 18 | Lower suction cover | IMZ-07.330.15 | 3P106935 | |
| 19 | Lower suction cover seal back-up | IMZ-07.330.24 | P100230 | |
| 20 | Pony rod | IMZ-07.331.05 | 3P100025 | |
| 21 | 5″ plunger clamp | IMZ-07.330.23 | 3P100148 | |
| 22 | Plunger packing | IMZ-07.330.10 | 3A105224 3A105224GD* | |
| 23 | Valve seat seal | IMZ-07.415.25-2 | P102173 | |
| 24 | Check valve for plungers lubricating system | IMZ-07.330.28 | ||
| 25 | Packing nut pin | IMZ-07.330.29 | ||
| 26 | Discharge flange | IMZ-07.330.30 | 3P100132 | |
| 27 | D-shape sealing ring of lower suction cover | IMZ-07.331.11-01 | ||
| 28 | 5″ pony rod seal | IMZ-07.331.06 | P100059 | |
| 29 | Rubber sealing ring of lower suction cover | IMZ-07.330.16 | 3P106933 | |
| 30 | Suction cover for pressure gage | IMZ-07.330.32 | 2P100586 | |
| 31 | Retainer nut for pressure gage | IMZ-07.330.33 | 4P101259 | |
| 32 | Discharge flange stud 1-8 UNCх3 1/2 | IMZ-07.330.39 | P14896 | |
| 33 | Nut 1-8 UNC | IMZ-07.330.39-01 | P14897 | |
| 34 | End seal with brass | IMZ-07.330.40 | 4P10258 | |
| 35 | Pump fluid end pin | IMZ-07.330.41 | 3P103852 | |
| 36 | 2″ end seal for HP mains | IMZ-08.330.10-02 | 4P10229 | |
| 37 | Plunger seal adapter | IMZ-07.330.09 | ||
| Item No. | Name | Code | Part Number SPM |
| 1 | Fluid end | IMZ-07.331.00 | 1P100646 |
| 2 | Spacer | IMZ-07.331.21 | 4P100649 |
| 3 | Header ring | IMZ-07.330.07 | P100195HP |
| 4 | Pressure ring | IMZ-07.330.06 | P100652HP |
| 5 | Female adapter | IMZ-07.331.03 | 4P100650 |
| 6 | Lantern ring | IMZ-07.331.02 | 4P100651 |
| 7 | Wiper ring | IMZ-07.330.08 | P101252HP |
| 8 | 4.5″ packing nut | IMZ-07.331.04 | 3P100647G |
| 9 | 4.5″ plunger | IMZ-07.330.20 | 3P100654 |
| 10 | Retainer nut | IMZ-07.330.19 | 4P100130 |
| 11 | Upper suction cover | IMZ-07.330.25 | 3P100231 |
| 12 | Upper suction cover D-shape seal | IMZ-07.331.08-01 | P108232 |
| 13 | Valve spring | IMZ-07.330.18 | 4P100235 |
| 14 | Valve | IMZ-07.414.25 | P105743 |
| 15 | Valve insert | IMZ-07.256.17 | P105363 |
| 16 | Seat | IMZ-07.415.25 | P105753 |
| 17 | Suction valve stop | IMZ-07.330.17 | 3P100232 |
| 18 | Lower suction cover | IMZ-07.330.15 | 3P106935 |
| 19 | Lower suction cover seal back-up | IMZ-07.330.24 | P100230 |
| 20 | Pony rod | IMZ-07.331.05 | 3P100025 |
| 21 | 4,5″-5″ plunger clamp | IMZ-07.331.17 | 3P100340 |
| 22 | Plunger packing | IMZ-07.331.20 | 3A104367HP 3A104367GD* |
| 23 | Valve seat seal | IMZ-07.415.25-2 | P102173 |
| 24 | Check valve for plungers lubricating system | IMZ-07.330.28 | |
| 25 | Packing nut pin | IMZ-07.330.29 | |
| 26 | Discharge flange | IMZ-07.330.30 | 3P100132 |
| 27 | D-shape sealing ring of lower suction cover | IMZ-07.331.11-01 | |
| 28 | 5″ pony rod seal | IMZ-07.331.06 | P100059 |
| 29 | Rubber sealing ring of lower suction cover | IMZ-07.330.16 | 3P106933 |
| 30 | Suction cover for pressure gage | IMZ-07.330.32 | 2P100586 |
| 31 | Retainer nut for pressure gage | IMZ-07.330.33 | 4P101259 |
| 32 | Discharge flange stud 1-8 UNCх3 1/2 | IMZ-07.330.39 | P14896 |
| 33 | Nut 1-8 UNC | IMZ-07.330.39-01 | P14897 |
| 34 | End seal with brass | IMZ-07.330.40 | 4P10258 |
| 35 | Pump fluid end pin | IMZ-07.330.41 | 3P103852 |
| 36 | 2″ end seal for HP mains | IMZ-08.330.10-02 | 4P10229 |
| 37 | Plunger seal adapter | IMZ-07.330.09 |
| Item No. | Name | Code | Part Number SPM | |
| 1 | Fluid end | IMZ-07.229.00 | 1P100335 | |
| 2 | Spacer | IMZ-07.229.25 | 4P100344 | |
| 3 | Header ring | IMZ-07.229.05 | P100342HP | |
| 4 | Pressure ring | IMZ-07.229.04 | P100343HP | |
| 5 | Female adapter | IMZ-07.229.09 | 4P100345 | |
| 6 | Lantern ring | IMZ-07.229.08 | 4P100346 | |
| 7 | Wiper ring | IMZ-07.229.06 | P101833HP | |
| 8 | 4″ packing nut | IMZ-07.229.10 IMZ-07.229.10 | 3P100341G | |
| 9 | 4″ plunger | IMZ-07.229.01 | 3P100339 | |
| 10 | Retainer nut | IMZ-07.330.19 | 4P100130 | |
| 11 | Upper suction cover | IMZ-07.229.11 | 3P100337 | |
| 12 | D-shape sealing ring of lower suction cover | IMZ-07.229.12 | P108143 | |
| 13 | Valve spring | IMZ-07.229.18 | 4P100348 | |
| 14 | Valve | IMZ-07.229.22-01 | P105741 | |
| 15 | Valve insert | IMZ-07.229.24 | P105763 | |
| 16 | Seat | IMZ-07.229.23 | P105751 | |
| 17 | Suction valve stop | IMZ-07.229.26 | 3P100338 | |
| 18 | Lower suction cover | IMZ-07.229.14 | 3P100336 | |
| 19 | Lower suction cover seal back-up | IMZ-07.229.16 | P107153 | |
| 20 | Pony rod | IMZ-07.331.05 | 3P100025 | |
| 21 | 4,5″-5″ plunger clamp | IMZ-07.331.17 | 3P100340 | |
| 22 | Plunger packing | IMZ-07.229.27 | 3A105348HP 3A105348GD* | |
| 23 | Valve seat seal | IMZ-07.229.23-01 | ||
| 24 | Check valve for plungers lubricating system | IMZ-07.330.28 | ||
| 25 | Packing nut pin | IMZ-07.330.29 | ||
| 26 | Discharge flange | IMZ-07.330.30 | 3P100132 | |
| 27 | 5″ pony rod seal | IMZ-07.331.06 | P100059 | |
| 28 | Rubber sealing ring of lower suction cover | IMZ-07.330.16 | 3P106933 | |
| 29 | Suction cover for pressure gage | IMZ-07.229.32 | 2P100354 | |
| 30 | Retainer nut for pressure gage | IMZ-07.330.33 | 4P101259 | |
| 31 | Discharge flange stud 1-8 UNCх3 1/2 | IMZ-07.330.39 | P14896 | |
| 32 | Nut 1-8 UNC | IMZ-07.330.39-01 | P14897 | |
| 33 | End seal with brass | IMZ-07.330.40 | 4P10258 | |
| 34 | Pump fluid end pin | IMZ-07.330.41 | 3P103852 | |
| 35 | 2” end seal for HP mains | IMZ-08.330.10-02 | 4P10229 | |
| 36 | Plunger seal adapter | IMZ-07.330.09 | ||
