Kuofu® supply Mission magnum centrifugal sand pumps and parts .
Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23 to 14x12x22b.
Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.
Specifications
* Sizes from 3x2x13 to 10x8x14
* Flow rates from a few gallons per minute up to 2,600 GPM
* Head pressure up to 550 feet
* Best utilized for applications requiring up to 200 HP
Features/Benefits
-
Versatile stuffing box
-
One piece casing
-
Casing gasket receded for protection
-
Back vanes reduce collection of solids at stuffing box
-
Long-life, no-adjustment mechanical seal available for near zero leakage
-
Replaceable shaft sleeve
-
Lip seals for maximum bearing protection (Labyrinth seals optional)
-
Duplex angular contact bearings
-
Thicker, stronger concentric casings
-
Full pipe diameter entrance for minimum turbulence and maximum efficiency
-
Single row roller bearings for increased bearing life
-
Easy accessible front access drain
-
Reduced high bearing loads

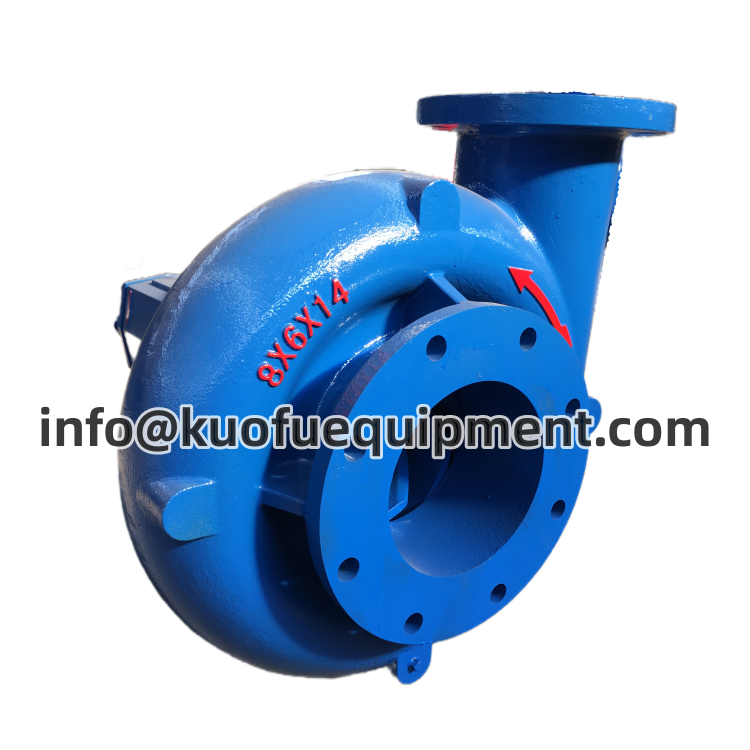

Mission magnum 8x6x14 pump
This series mud centrifugal pumps can Interchangeable with the original NOV,mainly design for solids control circulating system of oilfield drill rig. It can be used to provide drilling liquid with a certain discharge capacity and pressure to sand, desilter and mud mixer, to assure these equipments work efficiently.Features:
1. Open impeller design, ideally dealing high viscosity drilling slurries.
2. Combination seal for a long service life.
3. All pump models, use same frame support, convenient in maintainace and cut down costs.
4. The major parts are made from antiwear nodular iron,and long service life.
The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.
Mission Pump parts
* Kuofu® is a registered trademark and does not represent or is not in any way affiliated with Mission Magnum® of NOV Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Mission Magnum Pumps.
* Kuofu® sand pumps and spares are only interchangeable with Mission Magnum pumps and spares.
