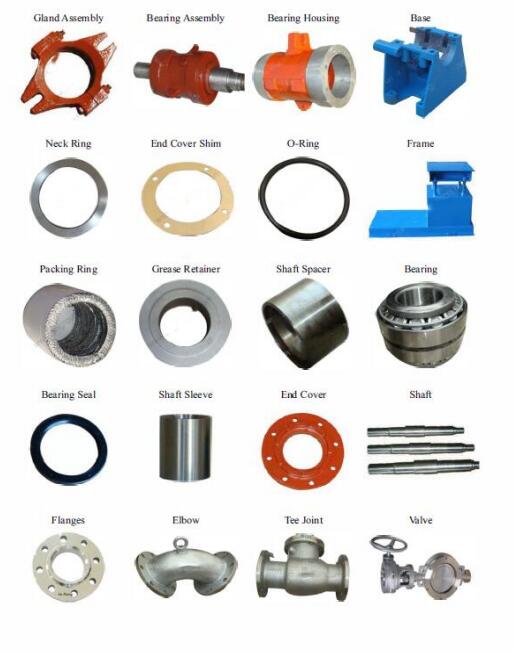

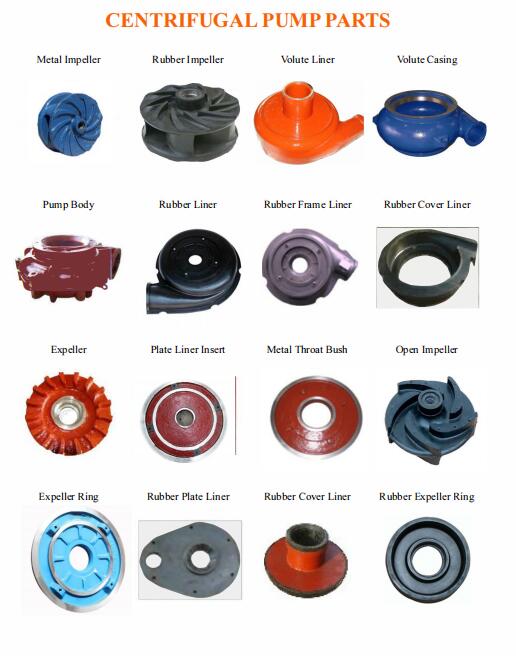

Warman spare pump parts
Replacement parts are dimensionally interchangeable with the Warman AH, L, HH, G, SP series.
High quality with lower cost, short delivery times!
WEAR RESISTANCE AND CORROSION RESISTANCE MATERIAL SHEET
| category | material code | mechanical properties | special properties | typical application | ||
| δw/δb (Mpa) | Ak (J/cm2) | HRC | ||||
| Abrasion-resistant white cast iron | KmTBCr26 | ≥700 | 6-10 | ≥56 | Its erosion resistance is second to KB06, and it has certain corrosion resistance. |
suitable for bearing a larger impact load abrasive wear, and suitable for medium with 5-12 PH. |
| KmTBCr15Mo | ≥550 | 4-8 | ≥59 | Have the best erosion resistance，but its corrosion resistance is not as good as KB03 and KB04. |
suitable for bearing a larger impact load abrasive wear |
|
| KmTBCr8 | ≥550 | 6-8 | ≥55 | Its erosion resistance is about 0.9 times of KB04. | suitable for mud slurry pump and ash slurry pump. | |
| KmTBMnMo | ≥400 | 3-6 | 38-42 | mild erosion resistance, lower hardness, can be drilled and tapped. | suitable for that contain trace fine particles，mild impact load abrasive wear. | |
| Wear resistance and corrosion resistance cast iron | ≥600 | 43 | has certain erosion resistance and corrosion resistance for low PH ambience, its corrosion resistance is similar toKB02. |
suitable for low PH ambience abrasive conditions，especially for flue gas conditions in power plant., desulphurization unit with PH more than 4. Usually used in low acidic conditions。 |
||
| 35 | has certain erosion resistance,is similar to KB02, has certain corrosion resistance. | special for delivering the oxidative slurry with PH less than 1.e.g., phosphogypsum, nitric acid, sulphuric acid and phosphoric acid in chemical fertilizer plants. | ||||
| Wear resistancecast iron | 1200 | 45 | has good erosion resistance, higher hardness | suitable for dredge boat pump. | ||
| 700 | HB 500-600 | higher hardness, great erosion resistance. | suitable for wear resistance , corrosion resistance and higher erosive resistance conditions, e.g., suitable for manufacturing parts of dredging pump, clean water pump , dirty water pump and slurry pump. | |||
| HB 300-350 | lower hardness, better erosion resistance, good weldability. | suitable for mild erosive resistance ,wear resistance , conditions, e.g., delivering aqueous medium with small sand. | ||||
| Natural rubber | R26 |
hardness（Hardness JIS A43±3） 2) tensile strength（Mpa）≥19 3）300%stretchingstrength（Mpa）≥1.9 4）elongation（%）≥500 |
As its hardness and elasticity is better than metallicity, wear resistance and corrosion resistance, better erosion resistance than others. The weaknesses is when using can't scratch. |
Great wear resistance and corrosion resistance, usually used for desulfurization pump, tailing in mining industry, slurry with small particles and no edges. It suitable for manufacturing volute liner. |
||
|
R24 |
hardness（Hardness JIS A50±5） 2) tensile strength（Mpa）≥22 3）300%stretchingstrength（Mpa）≥3 4）elongation（%） ＞500 |
As its hardness and elasticity is better than metallicity, wear resistance and corrosion resistance, better erosion resistance than others. The weaknesses is when using can't scratch. |
Great wear resistance and corrosion resistance, usually used for desulfurization pump, tailing in mining industry, slurry with small particles and no edges. It suitable for manufacturing impeller. |
|||
Quality Control
All our production processes are striclty follow ISO 9001:2015 standard, and every below centrifugal pump production step rules are rigorously carried out by us.
|
Stages of Manufacture |
Quality Control Activities |
Specification |
|
Raw material arrival |
Sampling, material chemical analysis |
NPB121.1-29-1997 |
|
Casting and composition |
Material material chemical analysis of pump parts |
NPB121.1-29-1997 |
|
Casting quality inspection |
NPB302-1998 |
|
|
Key component machining |
Dimension precision inspection |
NPB2105-87 |
|
Impeller balancing |
NPB061-2000 |
|
|
General assembly |
Procedure operation |
NPB2103-96 |
|
Hydraulic static test |
NPB064-1998 |
|
|
Performance test of pump unit |
Capacity and head |
NPB157-1997 |
|
Vibration and noise |
JB/T8097-95 |
|
|
Bearing temperature |
JB/T5295-91 |
|
|
Final inspection |
Packaging of pump unit |
NPB0157-1997 |
|
Documents |
NPB0157-1997 |
|
|
Spare parts and accessories |
NPB0157-1997 |
