IS series end suction pump
Product introduction:
1. IS series end suction centrifugal pump is the horizontal industrial centrifugal type water pump.
2. The end suction centrifugal pump is used to transport pure-water and other liquids, the physical properties of which are similar to those of water. The operation medium temperature is below 80°c.
3. It's single stage end suction structure with the merits of simple, reliable and good anti-cavitation performance, little power consumption and easy to maintain.
4. The centrifugal water pump applies to work in system of industry and city water supply & drainage, water supercharging of high rise building, park spray irrigation, water pressurize in fire control, remote water delivery, cycle refrigeration of heating and ventilation, circulatory supercharger of cold-warm water in bathroom, etc.
Product details:
| Working Principle: | Centrifugal |
| Main applications: | Water |
| Driver: | Electric motor or diesel engine |
| Power Specs: | 110/220V 1phase, 220/380/400/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Shaft seal type: | Mechanical seal, packing seal |
| Free passage: | 0mm |
| Maximum drive rating: | 90KW(10HP) |
| Maximum caliber: | 200mm(8inch) |
| Maximum discharge-side pressure: | 1.25MPa(12.5bar) |
| Maximum head: | 125m(410ft) |
| Flow rate range: | 6.3-400m3/h(27.7-1760US.GPM) |
Performance data:
| Model | Speed | Capacity | Head | Efficiency | Power(KW) | NPSH | Weight | ||||
| m3/h | L/S | (%) | Shaft power | Motor power | |||||||
| (r/min) | (m) | IS | IH | IS | IH | (m) | (kg) | ||||
| IS50-32-125 | 2900 | 7.5 | 2.08 | 22 | 47 | 43 | 0.96 | 1.09 | 2.2 | 2 | 32.5 |
| 12.5 | 3.47 | 20 | 60 | 51 | 1.13 | 1.33 | 2 | ||||
| 15 | 4.17 | 18.5 | 60 | 49 | 1.26 | 1.5 | 2.5 | ||||
| 1450 | 3.75 | 1.04 | 5.4 | 43 | 36 | 0.13 | 0.16 | 0.55 | 2 | ||
| 6.3 | 1.74 | 5 | 54 | 45 | 0.16 | 0.19 | 2 | ||||
| 7.5 | 2.08 | 4.6 | 55 | 44 | 0.17 | 0.21 | 2.5 | ||||
| IS50-32-125A | 2900 | 11.2 | 3.1 | 16 | 58 | 50 | 0.84 | 1.02 | 1.5 | 2 | 32.5 |
| 1450 | 5.6 | 1.56 | 4 | 52 | 44 | 0.12 | 0.15 | 0.55 | |||
| IS50-32-160 | 2900 | 7.5 | 2.08 | 34.3 | 44 | 33 | 1.59 | 2.13 | 3 | 2 | 38.5 |
| 12.5 | 3.47 | 32 | 54 | 46 | 2.02 | 2.37 | 2 | ||||
| 15 | 4.17 | 29.6 | 56 | 50 | 2.16 | 2.45 | 2.5 | ||||
| 1450 | 3.72 | 1.04 | 8.5 | 35 | 29 | 0.25 | 0.3 | 0.55 | 2 | ||
| 6.3 | 1.74 | 8 | 48 | 40 | 0.29 | 0.34 | 2 | ||||
| 7.5 | 2.08 | 7.5 | 49 | 43 | 0.31 | 0.36 | 2.5 | ||||
| IS50-32-160A | 2900 | 11.7 | 3.25 | 28 | 52 | 45 | 1.72 | 1.8 | 2.2 | 2 | 38.5 |
| 1450 | 5.9 | 1.64 | 7 | 46 | 39 | 0.24 | 0.27 | 0.55 | |||
| IS50-32-160B | 2900 | 10.8 | 3 | 24 | 50 | 1.36 | 2.2 | 2 | 38.5 | ||
| 1450 | 5.4 | 1.5 | 6 | 44 | 0.2 | 0.55 | |||||
| IS50-32-200 | 2900 | 7.5 | 2.08 | 52.5 | 38 | 28 | 2.82 | 3.78 | 5.5 | 2 | 46 |
| 12.5 | 3.47 | 50 | 48 | 39 | 3.54 | 4.36 | 2 | ||||
| 15 | 4.17 | 48 | 51 | 43 | 3.84 | 4.56 | 2.5 | ||||
| 1450 | 3.7 | 1.07 | 13.1 | 33 | 23 | 0.41 | 0.57 | 0.75 | 2 | ||
| 6.3 | 1.74 | 12.5 | 42 | 33 | 0.51 | 0.65 | 2 | ||||
| 7.5 | 2.08 | 12 | 44 | 36 | 0.56 | 0.68 | 2.5 | ||||
| IS50-32-200A | 2900 | 11.74 | 3.25 | 44 | 46 | 38 | 3.05 | 3.7 | 4 | 2 | 46 |
| 1450 | 5.9 | 1.64 | 11 | 40 | 32 | 0.44 | 0.55 | 0.75 | |||
| IS50-32-200B | 2900 | 10.8 | 3 | 38 | 44 | 37 | 2.54 | 3.1 | 4 | 2 | 46 |
| 1450 | 5.4 | 1.5 | 9.5 | 38 | 31 | 0.37 | 0.47 | 0.75 | |||
| IS50-32-250 | 2900 | 7.5 | 2.08 | 82 | 28.5 | 23 | 5.87 | 7.28 | 11 | 2 | 80 |
| 12.5 | 3.47 | 80 | 38 | 33 | 7.17 | 8.25 | 2 | ||||
| 15 | 4.17 | 78.5 | 41 | 36.5 | 7.83 | 8.79 | 2.5 | ||||
| 1450 | 3.75 | 1.04 | 20.5 | 23 | 17 | 0.91 | 1.23 | 1.5 | 2 | ||
| 6.3 | 1.74 | 20 | 32 | 27 | 1.07 | 1.27 | 2 | ||||
| 7.5 | 2.08 | 19.5 | 35 | 31 | 1.14 | 1.29 | 2.5 | ||||
| IS50-32-250A | 2900 | 11.7 | 3.25 | 70 | 36 | 32 | 6.2 | 7 | 7.5 | 2 | 80 |
| 1450 | 5.9 | 1.64 | 17.5 | 30 | 26 | 0.94 | 1.08 | 1.5 | |||
| IS50-32-250B | 2900 | 10.8 | 3 | 60 | 34 | 31 | 5.19 | 6 | 7.5 | 2 | 80 |
| 1450 | 5.4 | 1.5 | 15 | 28 | 25 | 0.79 | 0.93 | 1.1 | |||
| … … | |||||||||||
| IS200-150-250 | 1450 | 240 | 66.7 | 21.5 | 71 | 19.8 | 37 | 3.5 | 180 | ||
| 400 | 111.1 | 20 | 82 | 79 | 26.58 | 27.6 | 4.3 | ||||
| 460 | 127.8 | 17.5 | 80 | 27.4 | 5 | ||||||
| IS200-150-250A | 1450 | 374 | 87.2 | 17.5 | 80 | 78 | 22.29 | 22.9 | 30 | 4.3 | |
| IS200-150-250B | 1450 | 346 | 96.1 | 15 | 78 | 77 | 18.13 | 19.3 | 22 | 4.3 | |
| IS200-150-315 | 1450 | 240 | 66.7 | 37 | 70 | 67 | 34.6 | 34.7 | 55 | 3 | 245 |
| 400 | 111.1 | 32 | 82 | 79 | 42.54 | 44.1 | 3.5 | ||||
| 460 | 127.8 | 28.5 | 80 | 77 | 44.6 | 47.8 | 4 | ||||
| IS200-150-315A | 1450 | 374 | 103.9 | 28 | 80 | 78 | 36.62 | 36.7 | 45 | 3.5 | 245 |
| IS200-150-315B | 1450 | 346 | 96.1 | 24 | 78 | 77 | 29.02 | 30.8 | 37 | 3.5 | |
| IS200-150-400 | 1450 | 240 | 66.7 | 55 | 74 | 67 | 48.6 | 54.4 | 90 | 3 | 275 |
| 400 | 111.1 | 50 | 81 | 78 | 67.2 | 69.8 | 3.8 | ||||
| 460 | 127.8 | 45 | 76 | 75 | 74.2 | 78.5 | 4.5 | ||||
| IS200-150-400A | 1450 | 374 | 103.9 | 44 | 79 | 77 | 56.76 | 58 | 75 | 3.8 | 275 |
| IS200-150-400B | 1450 | 346 | 96.1 | 38 | 77 | 76 | 46.53 | 48.8 | 55 | 3.8 | |
Parameter table above is only a part of whole. For more, please contact us directly.

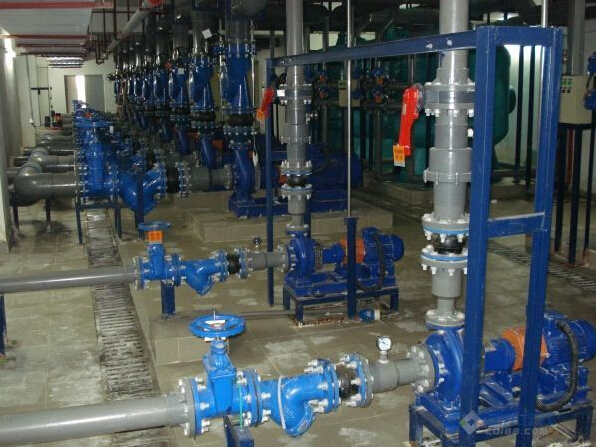

Application photo
